TCMMRC fpv FlySky FS i6X racing drone remote control 2.4 GHZ 10 CH for RC Helicopter Multi rotor drone| |

242800

Clear
SKU: N/A Category:

Description

TCMMRC Bully 220-The best fpv kit for drone introduction and practice by FPV professionals. The special design of brushless drone, FS-i6X remote control and SKY02X FPV goggles, bring you an unforgettable flying experience

FlySky FS-i6X remote control:

Specifications:
Channel: 6-10 (Default 6, you could choose 7-10ch in setting)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes

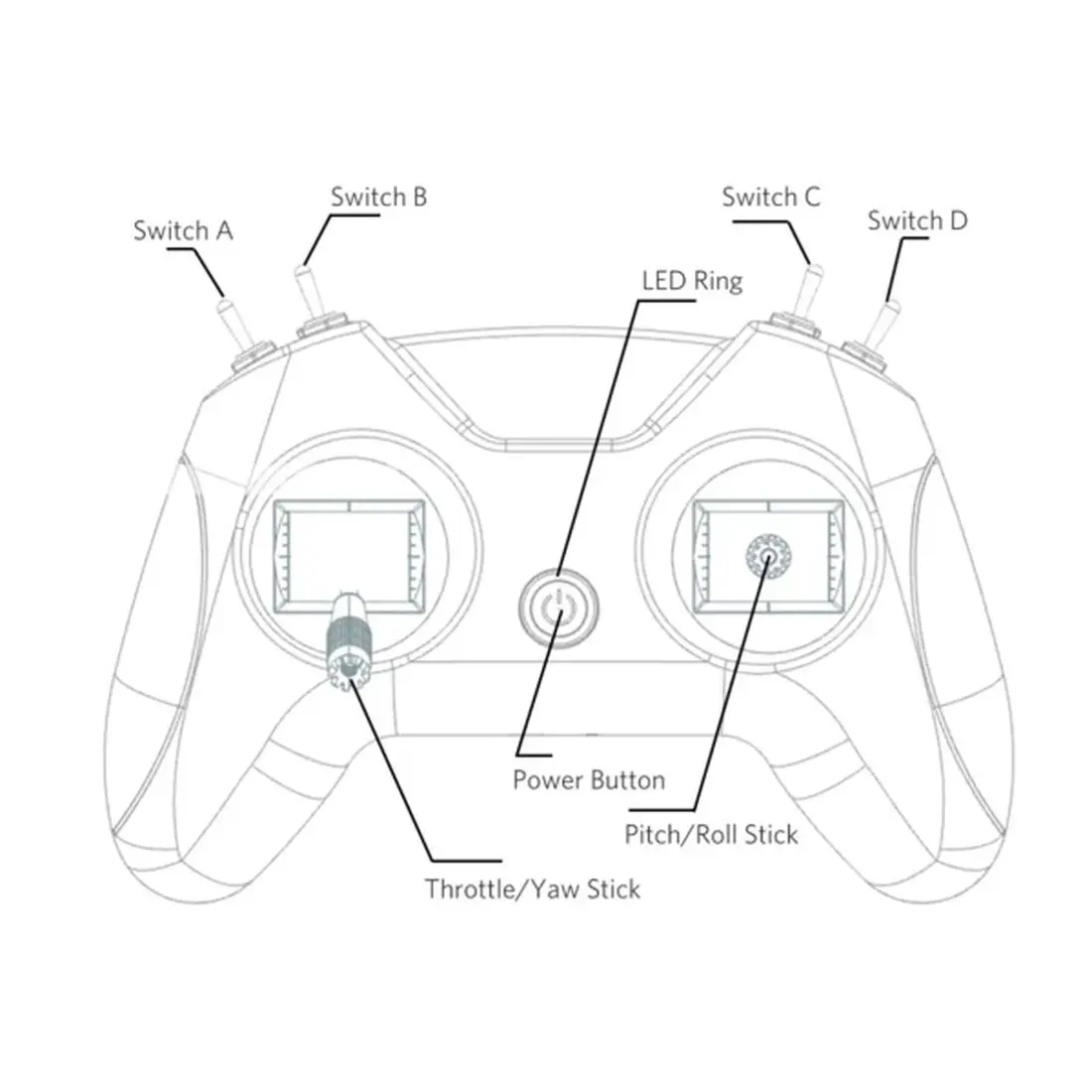

TM89VQ remote control:

Specification:
Frequency Range: 2.4G (2403MHz-2447MHz)
2.4G System: NRF24L01 and CC2500
Channel: 8
System: Bayang Protocol / Frsky Protocol
Power: ≤80mw
Model Type: Multi-rotor
Support USB Charging
Support FPV Simulator Connected
Output: PPM, support Student Radio Mode
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: 1 * 350mAh 2S Battery(Removable)
Weight: 227.4g (with battery)
How to switch the protocol (D16/D8 Version)
Press and hold the bind button, then press the power button until the purple light is flashing. The flashing LED indicates different protocol the LiteRadio works on.
LED Status Protocol Version
Flash Once Frsky D16 FCC
Flash Twice Frsky D16 LBT
Flash Three Times Frsky D8

SKY02X FPV goggles

Binocular Display:
FOV: 30 degree(Diagonal)
Resolution: 854×480(WVGA) 1,229,760 color sub-pixels
Brightness: 350cd/㎡
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm
Front Camera:
FOV: 60 degree(Diagonal)
Resolution:640×480(VGA)
Focal Length: f=4.0mm
F/NO:=2.8
Head Tracker: Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp‐p Typ. / 75ohm
Audio output level: 1.0Vp‐p Typ. / 10Kohm
Div. AV OUT(3.5mm4P): Diversity Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio input
HD Port IN(Micro HD Port/C‐Type): HD Port 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7~26V/ 1A(2S~6S)
Power Consumption: 12V input, 5.4W
Dimensions: 168(L)X92.5(W)X41(H)MM
Operating Temperature: 0 ℃~+60

VR009 FPV Goggles :

Specification:
Functions: Video
FPV Goggles
Resolution: 480 x 320
TV System: NTSC / PAL Switchable
Screen size: 3 inch
Battery: 3.7V 1200mAh Li-ion polymer battery
Working Time: 2.5 hours
Charge time: 2 hours
Main Features:
● Portable, small size and light weight
● Low power consumption, working current: 300 – 330mA
● Double antenna reception to make the signal more stable
● One key auto-searching function, fast and accurate
● 3 inch 480 x 320 high brightness LCD screen
● Built-in super sensitiveness 5.8GHz 40CH receiver, especially with RaceBand
● Built-in 3.7V 1200mAh high-capacity Li-ion polymer battery for long time using
● Universal USB charging interface
● Very low time-delay real-time video return ( 10 – 20ms )
● Bilingual menu, support Chinese and English
● Support external Audio video signal input
● Support AV signal output ( connect external DVR )

Parameters of the drone:

220mm Racing Frame Kit
Wheelbase: 220mm
Arm thickness: 4mm
X plate thickness: 2mm
Floor thickness: 2mm
Upper plate thickness: 2mm
Side panel thickness: 2mm
Frame kit material: 3K carbon fiber & CNC 6065 aluminium

2306 2450KV 3-5S Brushless Motor
Motor kv: 2450rpm/v
No-load current (IO/10V): 1.48A
Support lithium battery section: 3-5S
Weight: 32.5 grams
Maximum continuous current: 41A
Maximum continuous power: 820W
Maximum thrust: 1368g (4s/6")
Configuration: 12N/14P
Motor resistance (Rm): 0.0381Ω
Stator diameter: 23mm
Stator thickness: 6 mm
Motor diameter: 28.5 mm
Motor length: 19.7mm
Total length of shaft: 34.7mm
Axis thickness: M5
Mounting hole spacing: 16*19mm
Mounting screw: M3
Recommended propeller: 5 inches

TCMM 30A BLHELI_S 4 in 1 ESC
Continuous current: 30A
Peak current: 35A (10s)
Input voltage: 2-4s
BEC: 5V 3A-BEC
Firmware: blheli_s supports DSHOT 150-600 / MULTISHOT / PWM / ONESHOT125
MOS: 3*3
Ammeter: none
Weight: 28g
Mounting hole: 30.5×30.5mm / Φ4. 0
Size: 36*36mm

Omnibus F4 V3 flight controller
Project Name: Omnibus F4 V3 Flight Controller
Size: 36×36 mm
Mounting hole: 30.5×30.5mm
feature:
-STM32 F405 Microcontroller
– Support 2-4s power supply
-DSHOT support
– Configure drag and drop OSD via BetaFlight Configurator
– SmartAudio V2 support – adjust the PID and configure Omnibus FC from the transmitter
-MPU6000 6-axis SPI gyro and accelerometer
-SBU/PPM and Spketrum DSMX ports
-microSD card black box
– barometer (BMP280)
-5V2A BEC

– Image filter (5V can only be supplied to VTX and camera)
The firmware is Betaflight_3.1.7_OmniBusf4sd
Brush BF/CF/INAV/PIX firmware
RUNCAM Swift 2 Camera
Image sensor: 1/3 SONY SUPER HAD II CCD
Horizontal resolution: 600TVL
Signal format: NTSC/PLA (switchable)
Integrated microphone: yes
Integrated OSD: Yes
Electronic shutter: PLA: 1/50-100000 NTSC: 1/60-100000
Signal to noise ratio: >60DB (AGC OFF)
Lens: 2.5mm (default)
Wide dynamic: digital wide dynamic
Digital noise reduction: 2D noise reduction
Day and night switching: color / automatic / black and white
Support voltage: 5v-36v
Size: 28.5*26*26mm
Weight: 14g
5.8G 40CH 25/200/600mw switchable VTX
Output power and transmission distance: ≥0.5km@25MW, ≥1km@200MW, ≥2km@600MW
Transmitting power: 0 mw/25 mw/200 mw/600 mw
Complete video format: NTSC/PAL
Input voltage and power consumption: 7V~24V, +12V/260MA@600MW
Size: 36 × 36 × 5mm
Weight: ≤7g (except antenna)
With output power self-test function.
Digital tube scanning: frequency (1-8), frequency band (A-E), power (1-3, 0 = 0 MW, 1 = 25 MW, 2 = 200 MW, 3 = 600 MW)

DALPROP T5046C three-bladed propeller
Specification: 5046*3
Brand Name: DALPROP
Product Name: 5046 Propeller
Material: imported PC
Quantity: 10 pairs
Color: blue
Weight: 4g / only
Center hole: 5mm
Spiral diameter: 127mm
Wheel thickness: 8mm
