Product Description
HC-330H Four-rotor Hybrid-Electric UAV System is a high-performance multi-rotor UAV product designed and developed by Honeycomb Aerospace Technologies (Beijing) Co., Ltd. It has three-hour ultra-long voyage, carry a heavy payload, high reliability, platform versatility, weather resistance, and other industry-leading advantages. It can be widely used in agriculture and forestry monitoring, material delivery, atmospheric monitoring, power inspection, oil and gas inspection, railway inspection, land mapping, environmental monitoring, aerial photography, and other fields.

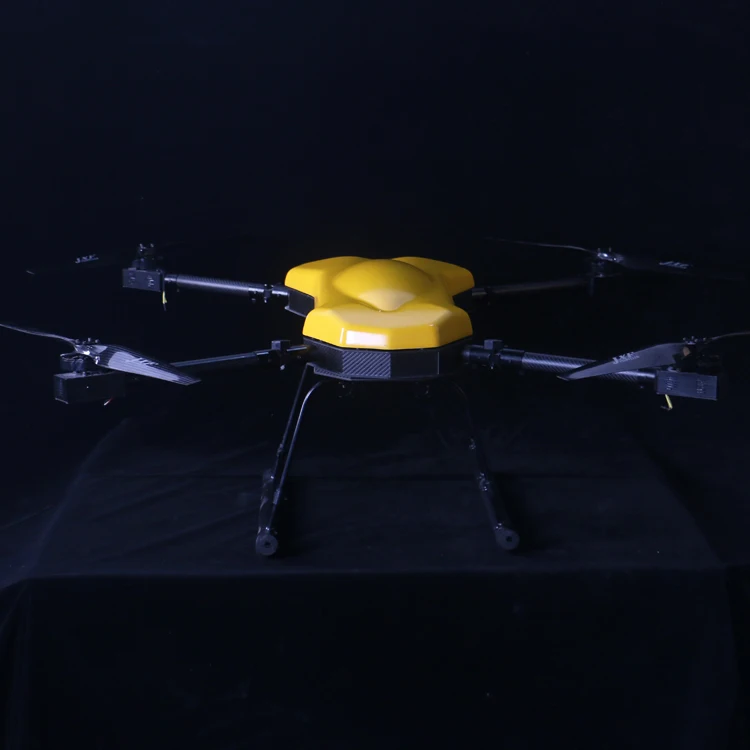

Front View

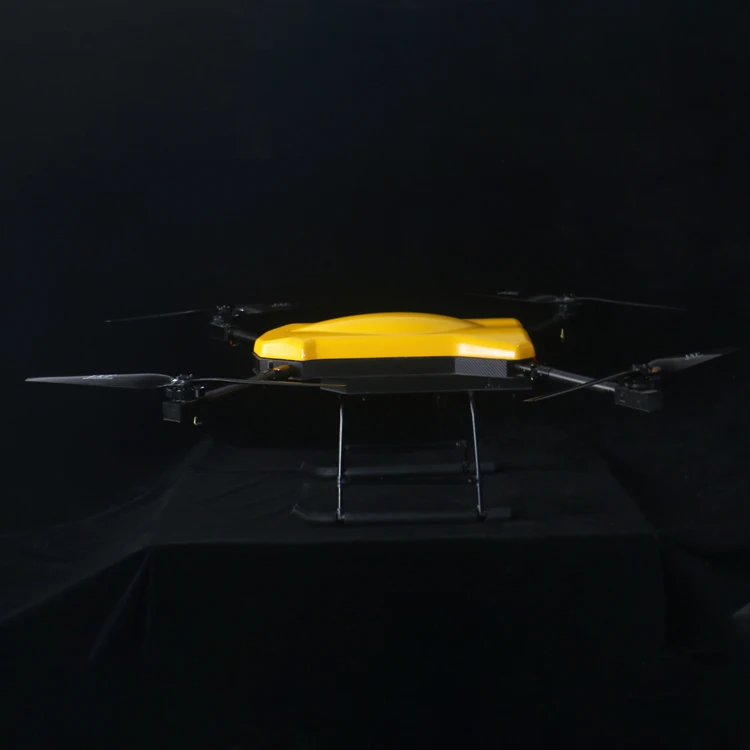

Side View










Top View

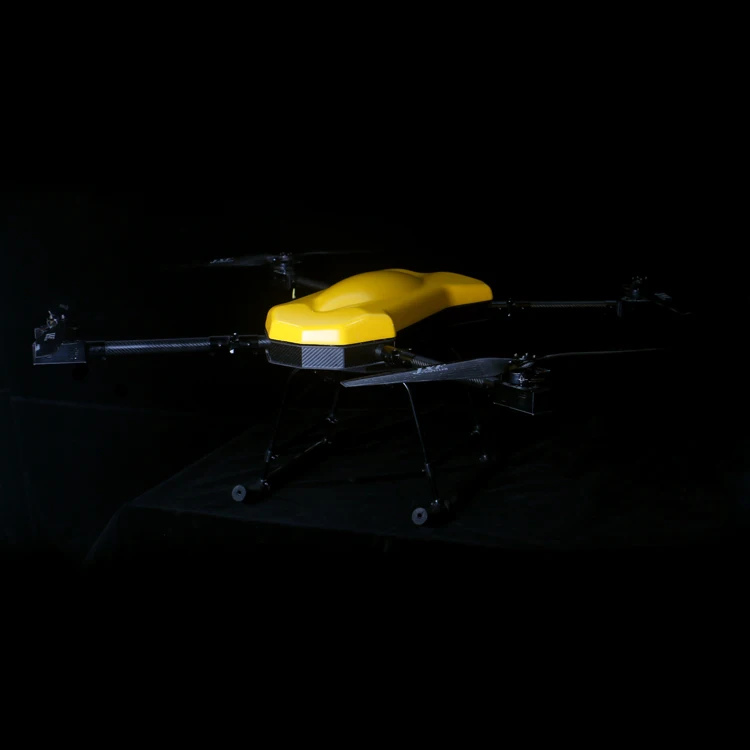

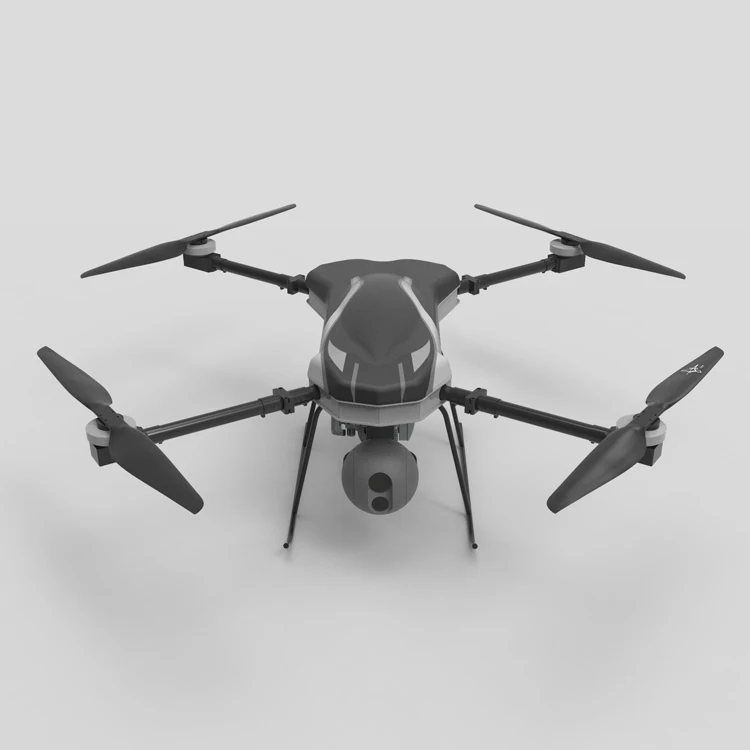

Isometric View






Isometric View











Rendering Diagram

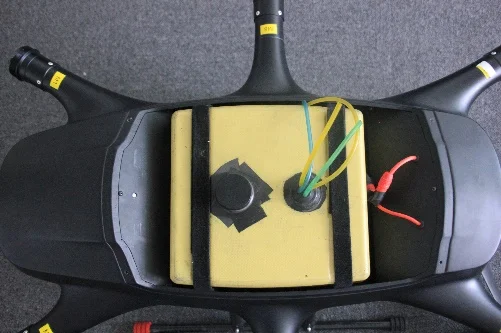

Power System

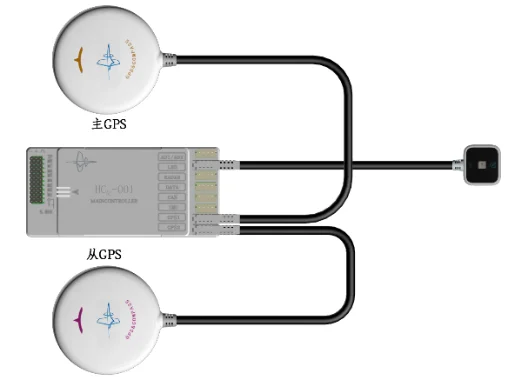

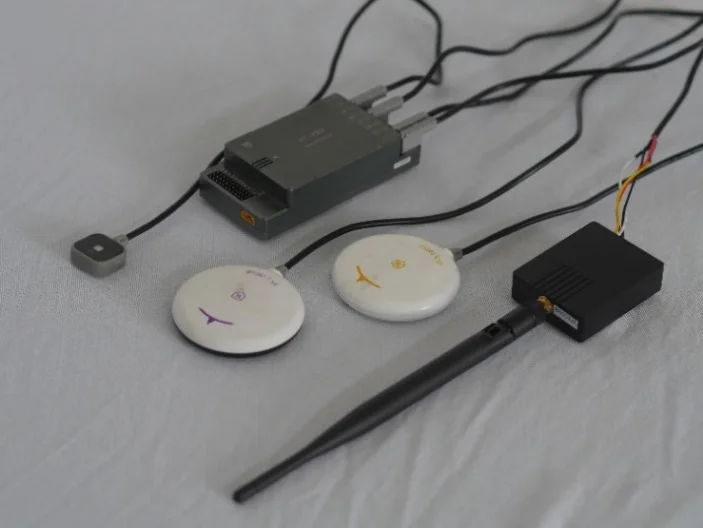

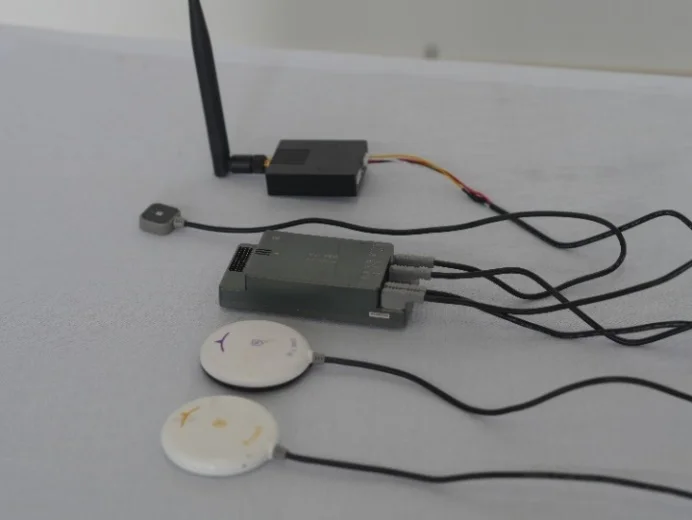

Avionics

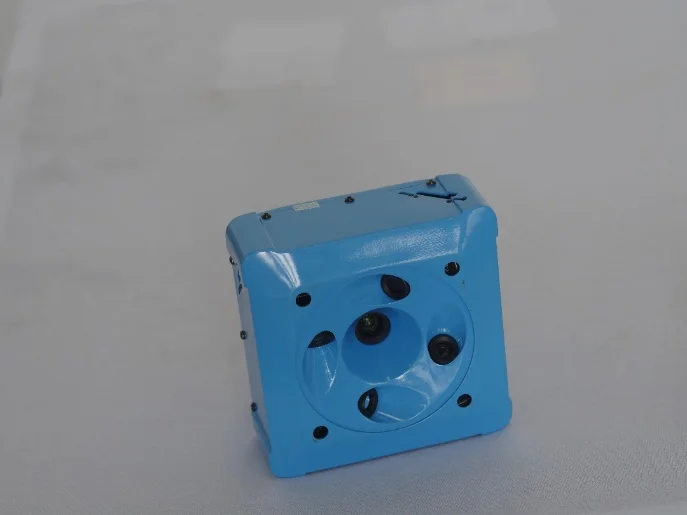

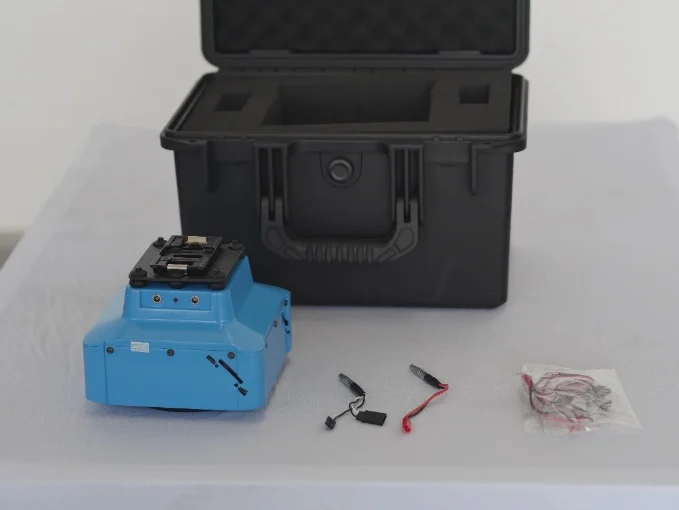

Payload

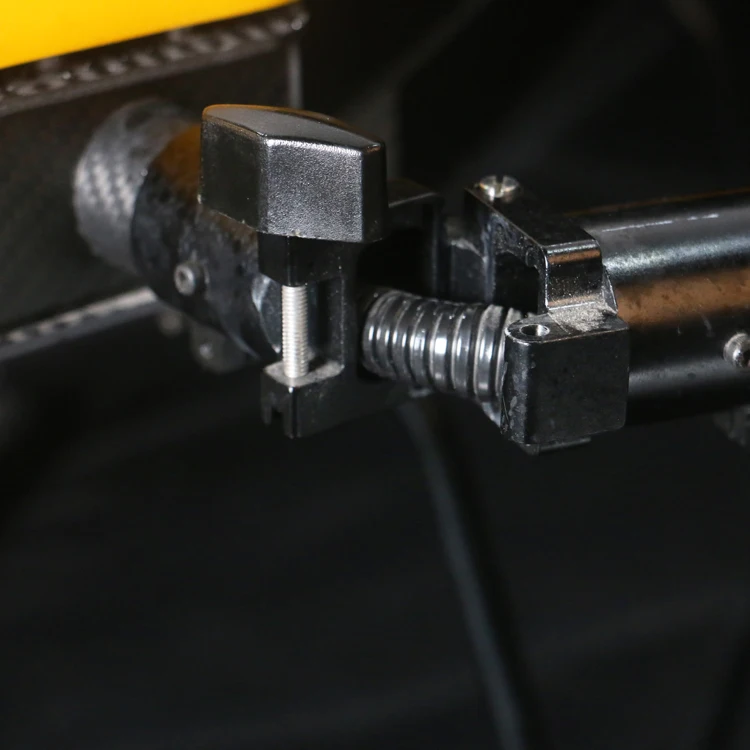

Arm Connection

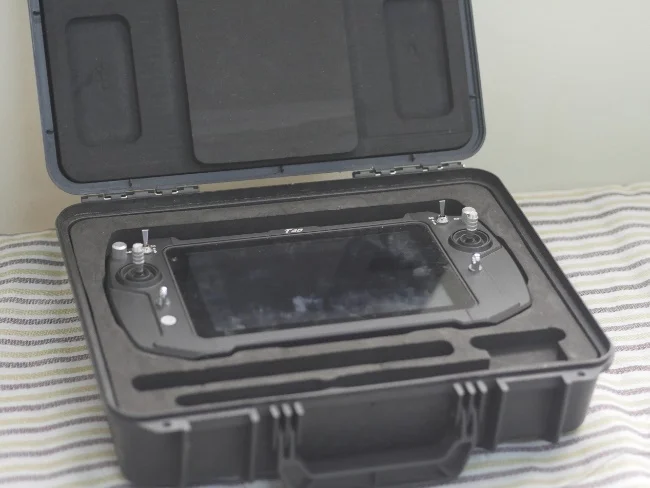

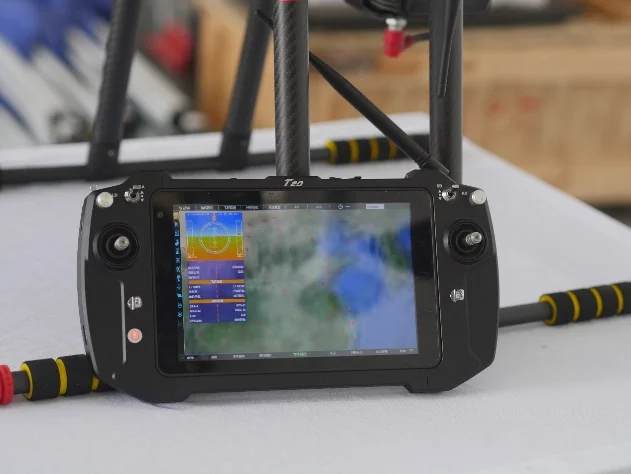

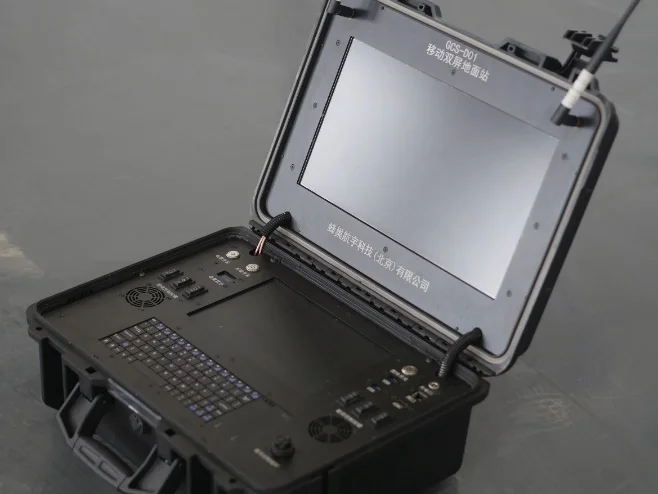

Transmitter & Ground Station

Specifications
Category
Specification
Parameter











Flight System
Diagonal distance
1450mm
Unfolded dimension
1450×1450×500mm

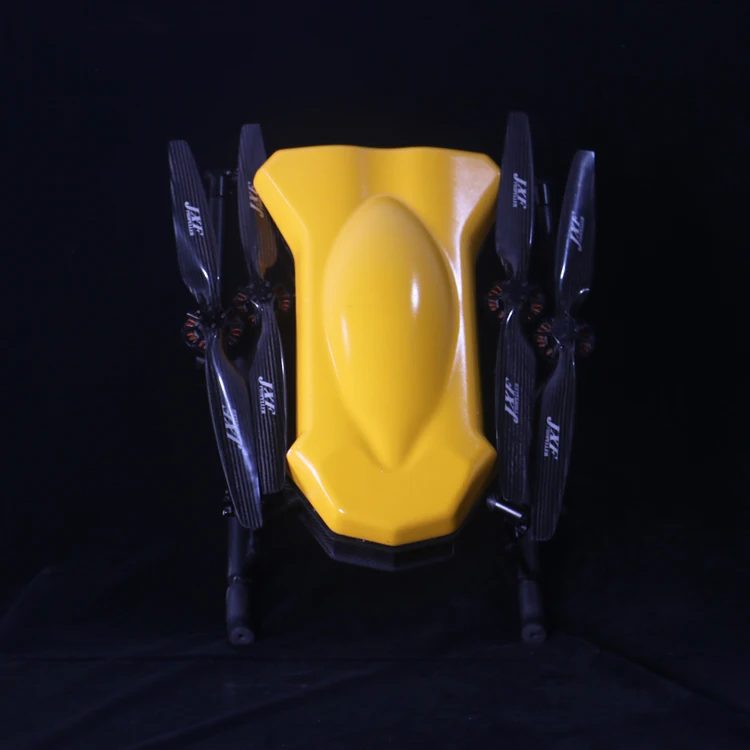

Folded dimension
900×700×600mm
Manufacture material
The arms are of 3K carbon-fiber structure, and the body is of glass-fiber structure
Empty weight
14kg
Maximum take-off weight (Above sea level)
18kg
Standard payload
1kg
Max payload
3kg
Standard propeller
29×9.5inch
Cruising speed
8m/s
Max flight speed
12m/s
Max Altitude
1500m (Above sea level)

Endurance
180min@1kg
120min@3kg
Power plant
2.1kW Hybrid-Electric
Engine
29cc
Electric motor
HC-8012
Electric speed controller (ESC)
80A brushless ESC
Fuel tank capacity
4L
Specific fuel consumption (SFC)
1.5L/h
Assembly way
Retractable arm






Flight Control System
Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚
Position navigation accuracy
Horizontal 10cm / Vertical 50cm
Positioning accuracy
Normal 10cm / Differential 1cm
Attitude control accuracy
±1˚
Direction control accuracy
±2˚
Position control accuracy
±10cm
Positioning algorithm
RTK GNSS / GNSS+INS
Operating temperature range
-20˚C ~ 40˚C
Flight mode
Manual / Auto
Emergency measure
Out-of-control return, low voltage return, fault alarm

Link system
Control radius
5~10km (no obstacles)
Video output format
1080P@30fps

Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Rain resistance level
IP54

Aircraft Logistics
Unfold, fold time
≤10min
Fuel
92 gasoline with engine oil 25:1 mixed fuel

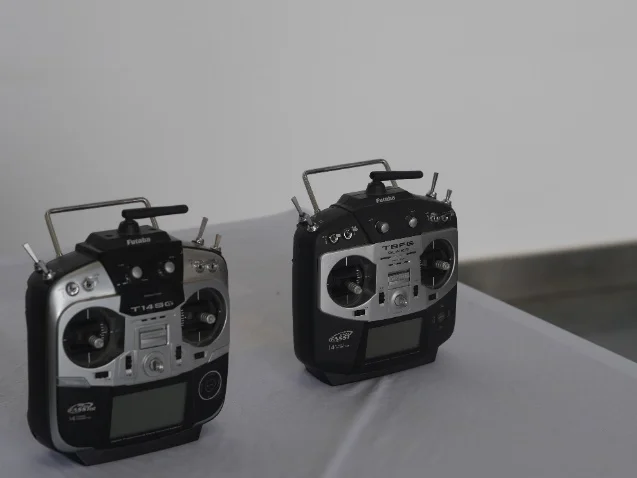

Remote Controller
Model
FUTABA T8FG
Work frequency
2.4 GHz
Remote Controller
Max signal effective distance (no interference, no occlusion)
2km

Payload
Standard

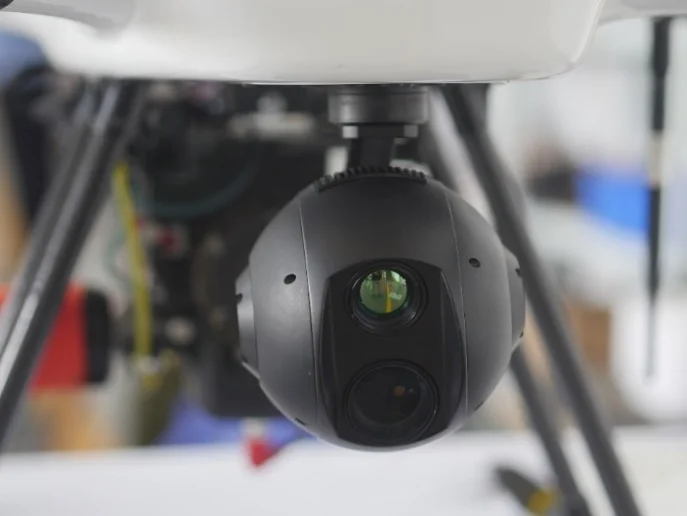

Three-axis photoelectric pod

Selective
Oblique photography camera
SONY A7 camera
